4K/8K Video

POST-PRODUCTION
Boost

NVMe Cache
/TierBoost

Up to

6000MB/s

PERFORMANCE

Performance

FileBoost™ enables very high-speed file transfer and file sharing among team members connected to the VTrak N-Series 10G shared storage, improving post-production workflow efficiency on 4K and 8K productions. FileBoost was first introduced in 2020 with the PegasusPro Series to the delight of post-production and DIT professionals charged with managing team projects. Now this same technology is a featured performance booster on VTrak N-Series.

With NVMe

10G Base-T

Read:4000 MB/s
Write:2000 MB/s

10G SFP+

Read:4000 MB/s
Write:2000 MB/s

25G SFP28

Read:4200 MB/s
Write:2000 MB/s

VTrak N1008

Includes NVMe SSD caching rated at 4.2GB Read, 2GB Write throughput combined with network interface options that include 4 x 10G Base-T, 4 x 10G SFP+ or 2 x 25G SFP28.



TierBoost™ available on the VTrak N1616, is a data tier management service that automatically classifies data by frequency of access. “Hot” data is migrated to the fastest tier (NVMe SSD), while the “Cold” data is placed in lower priority tier (SATA HDD), a middle tier (SATA SSD) contains “Warm” data with frequency access in between the other tiers.

With 10 SSD TierBoost

10G Base-T

Read:6000 MB/s
Write:3000 MB/s

10G SFP+

Read:6000 MB/s
Write:3000 MB/s

25G SFP28

Read:6000 MB/s
Write:3000 MB/s

NVMe Caches available on the VTrak N1008 increases transfer speeds of large files.
10G and 25G Ports available to deliver is huge increase in Rx/Tx bandwidth.

Data Protection is Essential

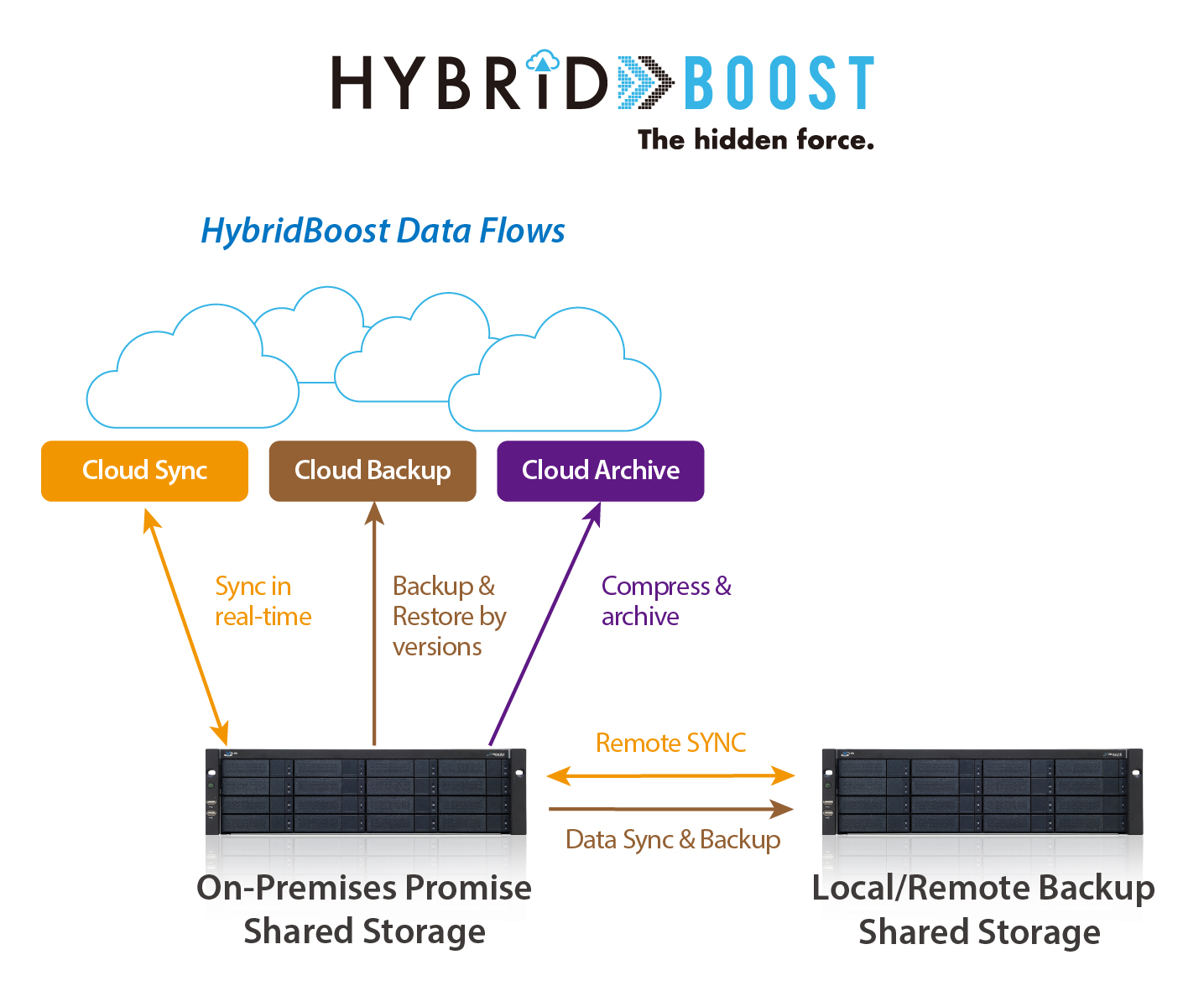

Protection against data loss is ensured by the famous PROMISE RAID engine featured in the entire VTrak line of network storage systems. Additional backup mechanisms to cloud or remote storage are easily managed using the web-based management interface.

Manageability

Simplified administration is another win for VTrak N-Series. The system includes a preconfigured shared storage including the administrator controlled Team folder setup for immediate sharing. The software for both administrator and client is very easy to use, with an intuitive GUI, and it requires very little actual administration but gives complete control of access to the administrator. More advanced system administration is available, of course, using the web-based management user interface.

Specifications

Model
VTrak N1008
VTrak N1616

Form Factor
Tower
3U
Drive Support
3.5" & 2.5" SATA 6Gb/s HDD/SSD
3.5" & 2.5" (SAS 12Gb/s; SATA 6Gb/s) HDD/SSD
Processor
Intel CPU i5-8500.3.0 GHz. 9MB Cache.65W.6 Cores
Intel CPU i7-8700. 3.2GHz. 12MB Cache.65W 6 Cores
Memory
32GB
64GB
Max HDDs
8
16
Memory Slot
2 x Long-DIMM DDR4
4 x Long-DIMM DDR4
Drive Bays
8 x 3.5-inch
16 x 3.5-inch
Boost
NVMe Cache 2TB x 2
PROMISE TierBoost (SSD Tiering)
RAID Level
RAID 0, 1, 5, 6, 10, 50, 60
RAID 0, 1, 5, 6, 10, 50, 60
Hot Swap
Yes
Yes
More Spec +
*All specifications and descriptions provided herein may be different from the actual specifications and descriptions of the product.
