Pegasus R12

Elegant High-Performance

Big capacity in a compact system

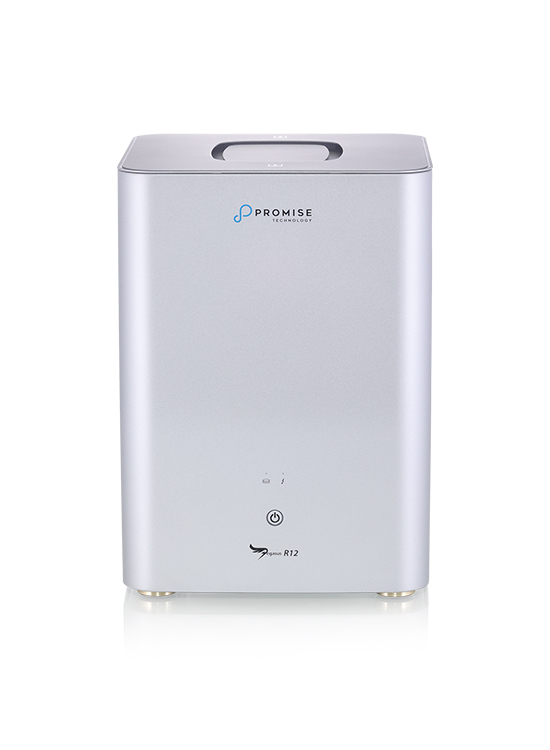

PegasusR12 Front

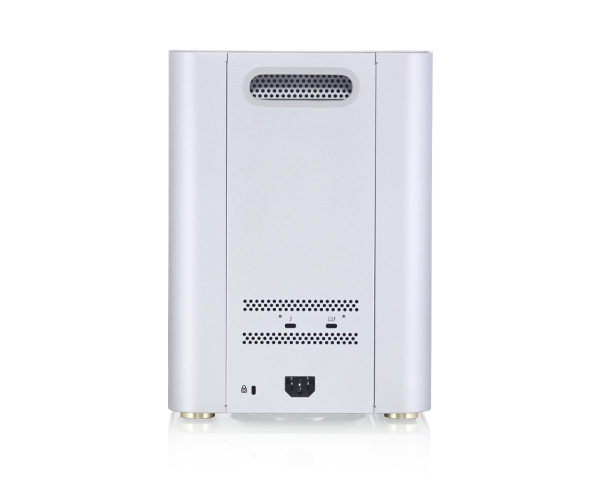

PegasusR12 Back

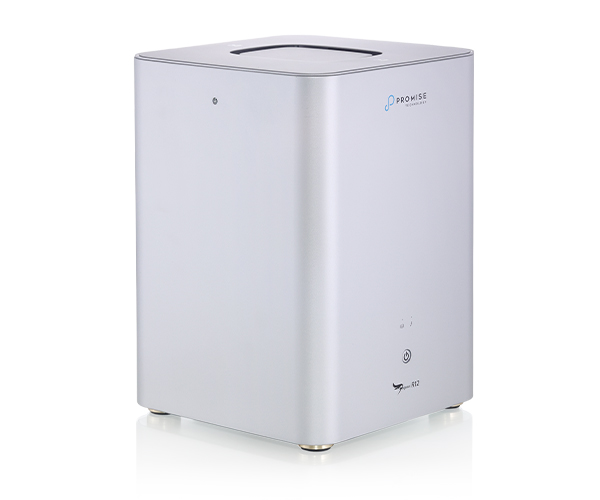

PegasusR12 Left

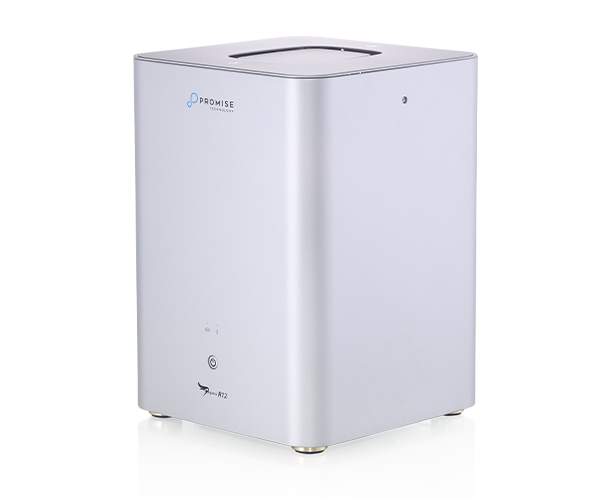

PegasusR12 Right

Thunderbolt™ 4

Pegasus R12 utilizes the Thunderbolt™ 4 technology 40Gbps transfer speed, equipped with the industry renowned PromiseRAID engine. Pegasus R12 offers flexibility with two Thunderbolt™ 4 (Type-C) ports supported on current and earlier Mac and Windows generations.

New 12-Bay Desktop Design

Slick, elegant and compact 12-bay design packs up to 240TB HDD (20TB x12 3.5" enterprise nearline HDD) in an enclosure nearly the same size of most 8-bay enclosures in the market. PROMISE engineered this high-density design that enables quick and easy drive swapping and produces very low noise output using intelligent fan control. Pegasus R12 is the compact, large capacity, whisper-quiet storage workhorse for your desktop.

Easy Handling

Pegasus R12 compact design that enables moving from studio to studio, set to set easily. Once connected with Thunderbolt™ cable and power cord, Pegasus R12 automatically wake and sleep in accordance with host computer activities to save power and reduce noise. Pegasus R12 slick and elegant design with top cover features a clean appearance, easy drive replacement, while prevents accidental drive removal.

PromiseRAID

PromiseRAID is renowned in the storage industry for stability and performance. The PromiseRAID engine has proven itself in enterprise storage for decades. This same innovative technology is at the core of the entire Pegasus storage line. Drive failure risk increases as number of drives and the capacity of the drive increases. Predictive Data Migration (PDM) feature, a part of PromiseRAID, performs workflow to periodic media check for taking action automatically before drive failure happen.

GreenBoost

Pegasus R12 continues power saving features built in the Pegasus systems. Once connected with Thunderbolt™ cable and power cord, Pegasus R12 power management automatically wake and sleep in accordance with host computer activities to save power and reduce noise. If the host computer enters sleep mode, is shut down, or the Thunderbolt™ connection is disconnected, the Pegasus R12 enters energy savings mode.

Specifications

Model
Pegasus R12

Form Factor
12-Bay Tower
Drive Support
3.5” SATA 6Gbps
Processor
Storage Processor 4 cores, 2.2 GHz
Memory
8GB DDR4 ECC DIMM
Interface Type
Thunderbolt™4 40Gbps / USB4 40Gbps / Thunderbolt™3 40Gbps
Thunderbolt™ Port
Thunderbolt™4 ports x2 (Upstream x1, Downstream x1)
External Monitor
One downstream Thunderbolt™4 port can connect up to dual 4K monitors or single 8K monitor
Power Delivery
85W (Thunderbolt™ host and USB4 host)
Port Type
USB Type-C
RAID & Features
RAID Level
RAID 0, 1, 5, 6, 10, 50, 60, JBOD
Hot Spare
Yes
Max LUNs
128
Hot Swap
Yes
Software Highlights
Supported OS
macOS, Windows
Management Tool
PROMISE Utility Pro
Product Specific Features
Intelligent Cooling, Drive SMART health Polling
Physical Information
Dimension
227mm(L) x 227mm(W) x 318mm(H)
Weight
12.3kg
Power Supply
AC 100~240V auto-ranging, 50~60Hz, 350W
Environment
Temperature Range
Operating: 5°~35°C, Non-operating: -40°~60°C
Humidity
Operating: 10%~95% non-condensing , Storage: 10%~95% non-condensing
Standard
EMC: FCC, CE , Safety: cTUVus, CB
Green Certificate
ErP/EuP, RoHS, WEEE
Warranty and Support
Warranty
3-years standard warranty, optional extended warranty, and on-site parts replacement program (PROMISE ServicePlus) available.
Support
24/7 PROMISE eSupport Portal (https://support.promise.com), optional 24/7 phone and email support available.
