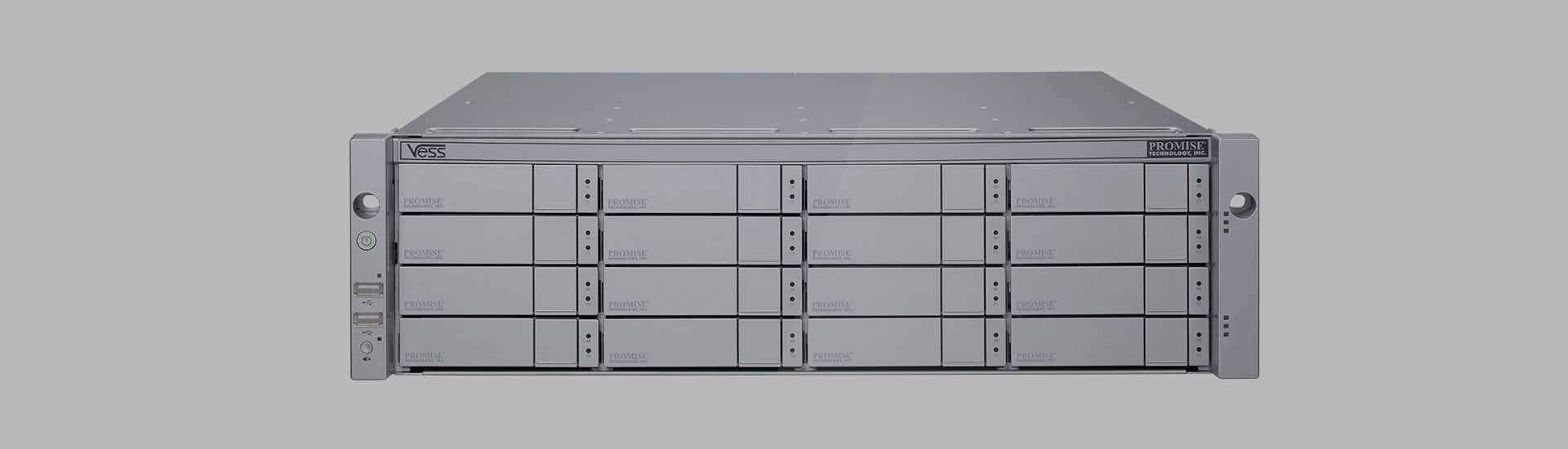

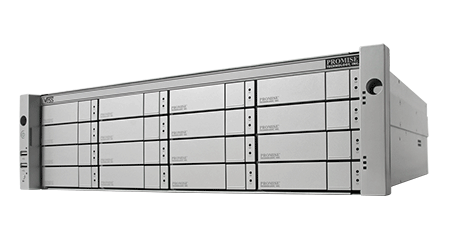

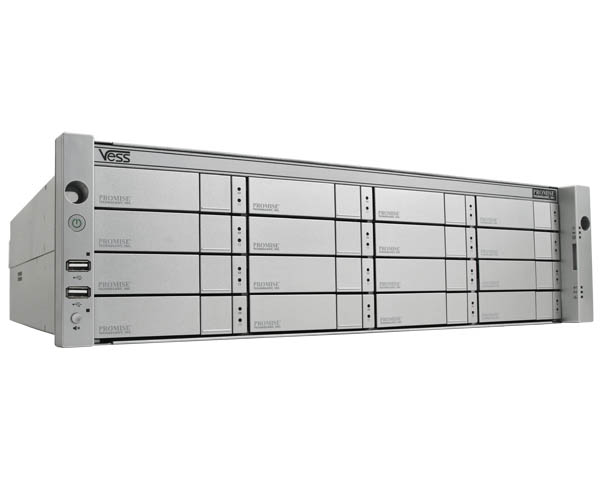

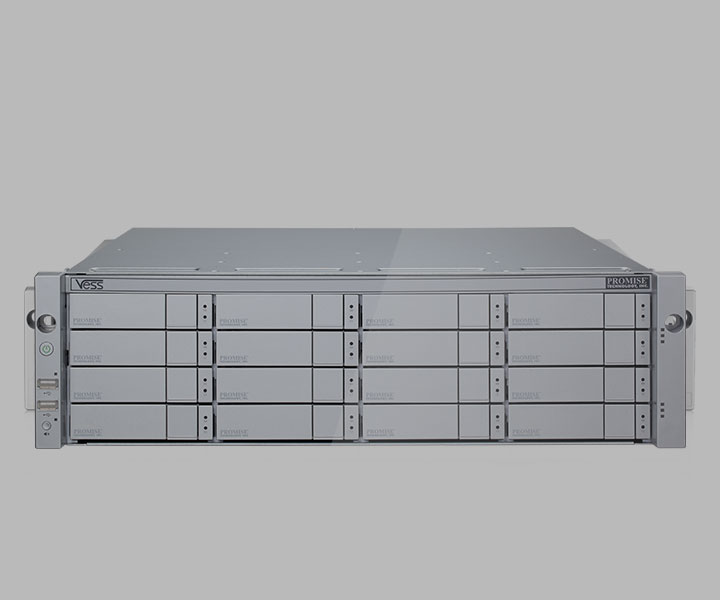

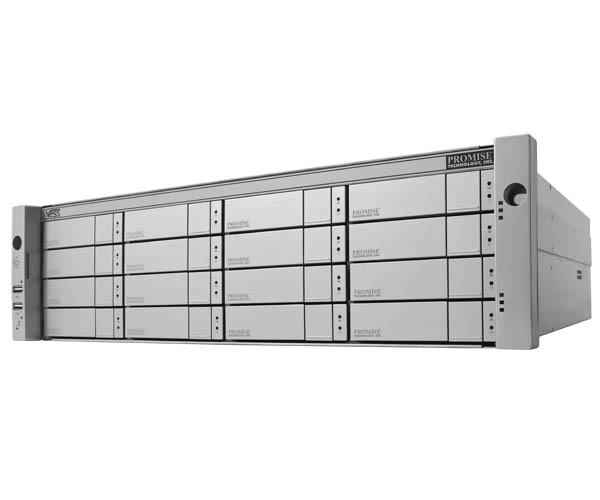

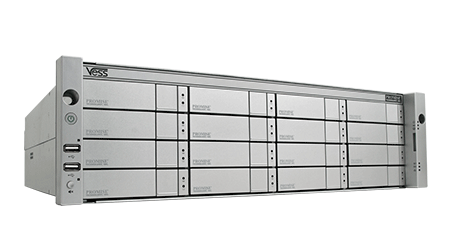

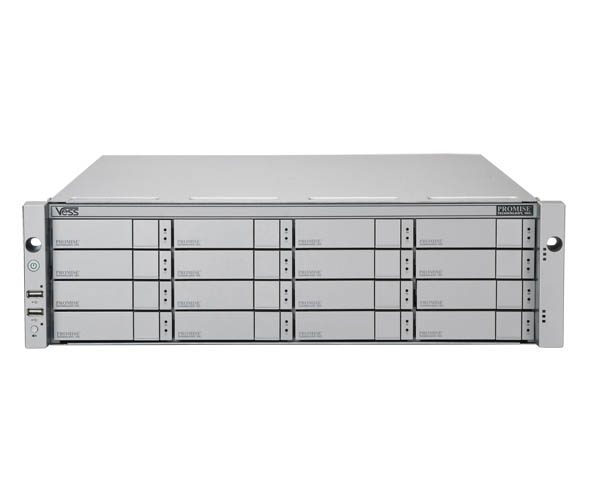

Vess R2000 Series

High-availability dual controller NAS

Cost-effective high-availability NAS

Service interruptions can cripple a business. With the Vess R2000 Series, customers have a cost effective, dual controller, high-availability NAS-in-a-box, which ensures uninterrupted services. Conventional single controller based NAS solutions cannot always provide uninterrupted services. In order to achieve high-availability, those NAS solutions must deploy a high-availability cluster combining several devices, which is significantly more expensive.

Save space, costs and frustration

The Vess R2000 high-availability NAS cuts system configuration costs in half, cuts rack space by 50%, and greatly reduces management complexity compared to traditional single controller NAS solutions. Combined with the decreased risk of downtime and the hidden costs associated with bringing back single controller solutions for live use, the Vess R2000 Series is ideal for businesses trying to do more for less.

Unified storage for SMBs

The Vess R2000 Series is a unified storage solution that offers impressive performance while simplifying administration and adding flexibility. Choose to use an 8 Gb/s FC SAN for heavy I/O applications like video editing, high performance computing or scientific research. Use the 1 Gb/s &10 GB/s iSCSI SAN for less intensive I/O applications like data backup or remote replication. Or use NAS for video surveillance, virtualized environments or general file sharing applications.

Virtualization ready

Ready to confront any challenge in today’s virtualized IT environment, the Vess R2000 is certified with VMware vSphere, Citrix XenServer, Microsoft Hyper-V and DataCore SANsymphony-V. Additionally, the Vess R2000 Series now supports VMWare VAAI, which reduces resource overhead on VMWare vSphere ESXi hosts. This significantly improves performance for storage-intensive operations like storage cloning, zeroing, and more.

Certified by Milestone for video surveillance

The Vess R2000 Series is tested and certified for Milestone XProtect® video management software. With documented performance results, best practice guidelines, and innovative solution architectures, integrators and end users can easily build a video surveillance solution with Vess and XProtect with complete confidence. Additionally, the Vess R2000 was verified to support up to four times the number of cameras as recommended by the Milestone calculator.

Simple to manage and use

Ease of use is absolutely crucial for SMBs with limited IT resources. The Vess R2000 Series is designed specifically with SMBs in mind, as it features One Plug Auto Service (OPAS) to reduce maintenance complexity and provide a streamlined tech support workflow. Simply plug in a USB drive and the user can retrieve information about the system for tech support, upgrade firmware, reset passwords and much more.

Models

  • Features
    • High-availability dual controller NAS with 10G options
    • Unified storage that consolidates both block and file storage onto a single box
    • Data service includes volume clone, file backup/restore and volume replication are all available on NAS
    • Excellent blend of affordability and speed
    • Designed to meet the growing challenge of unstructured data
    • Virtualization ready, certified with VMware, Citrix, Hyper-V and DataCore
    • Certified storage solution for Milestone, delivers reliable and stable performance for video recording

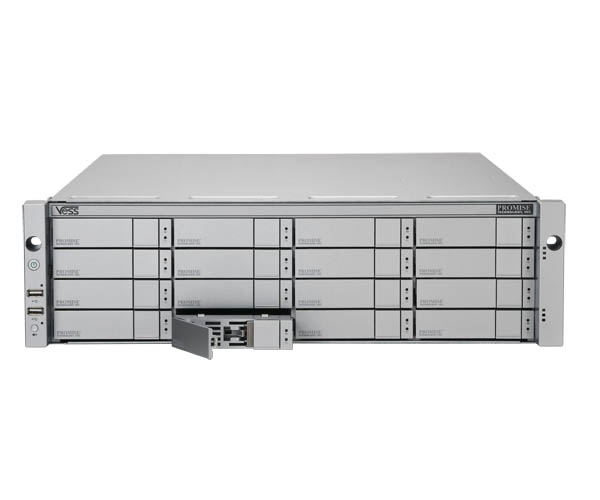

    • Hot swappable drive bays and coolings & redundant power supplies
    • User friendly design simplifies maintenance and reduces support costs
    • Easily scale to meet future capacity requirements
  • Specifications

    Specifications

    Product Category
    IP SAN Storage
    Availability
    Released
    Form Factor
    3U16, 19" rackmount
    Controller
    Single controller (R2600iS)
    Dual controller (R2600iD)
    Drive Support
    SAS/SATA 6Gb/s
    Cache Memory per Controller
    2GB Standard (max. 16GB)
    Max. # of HDDs Supported
    112
    Host Connect Interface
    4x 1Gb iSCSI (per controller)
    RAID Levels
    0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60
    Power Supply
    500W (Three redundant 250W N+1 design)
    Dimensions
    131 x 447 x 507 mm
    Weight
    20.1 kg (44.3 lbs) w/o drives, 31.3 kg (69 lbs) w/ drives
    Warranty
    3 years and EW plans
  • Resources

    NEWS

    Promise Technology to Showcase its Open Storage Platform for IP Video Surveillance at ASIS International

    August 24, 2016

    Promise Technology announced that it will showcase its newest line of Vess network video recorders (NVRs) and external storage solutions at ASIS International in Orlando, Florida in hands-on demos with the leading video management software (VMS) and IP camera vendors. In addition, Promise’s booth will host the company’s Presentation Theater, an informative seminar program that provides visitors with access to the latest intelligence in topics ranging from Video Management Software, IP Cameras, Recording and Storage Technologies and much more.

    Promise Technology Certifies Over 60 Security Professionals at IP Video Surveillance Training Courses in Dubai and Abu Dhabi

    March 03, 2016

    Promise Technology Inc., a leading developer of open platform storage solutions for video surveillance, announced it has certified over 60 system integrators and security professionals as part of its IP Video Surveillance Training Course in Dubai and Abu Dhabi with its partner Business Automation And Security Systems (BASS).

    Drivers / Utilities / Firmware

    Documents

  • Related Products

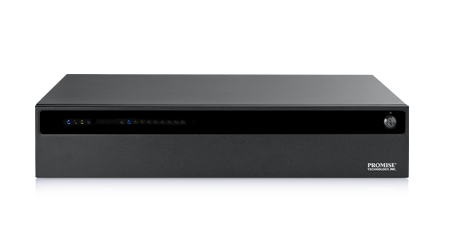

    Vess A-Series
